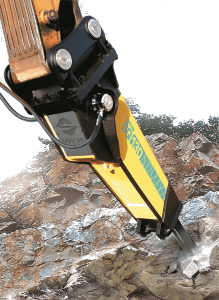

The latest product to come out of the Soosan factory is the revolutionary new SQ Series breaker. This modern breaker is a culmination of more than 2 decades of planning and experience.
Its innovative design includes a superior oil and gas percussion mechanism combined with less working components, making it incredibly efficient and easy to maintain. The auto shut off function (anti-blank hammering) also gives the user total control and allows you to select between high frequency/normal power and low frequency/extra power, making it as effective as it is adaptable.
- Highest power to weight ratio
- Narrow profile with a robust structure
- Improved vibration dampening and sound suppression system
- Fully enclosed housing and dust protector
- Auto shut off and easy start function
- Locking device for the tie nut bolt
- Models available with operating weights from 1263kg up to 5850kg for carriers from 60 to 90 tonnes

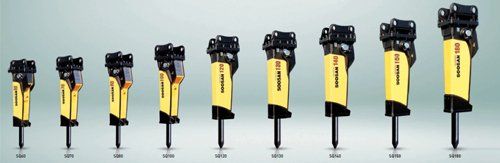

| Model | SQ60 | SQ70 | SQ80 | SQ100 | SQ120 | SQ130 | SQ140 | SQ150 | SQ180 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Operating weight | 1263 | 16620 | 2013 | 2185 | 2510 | 3033 | 3169 | 3950 | 5850 | kg |
| Height | 2604 | 2670 | 2801 | 2918 | 3194 | 3337 | 3351 | 3575 | 3709 | mm |
| Oil flow | 90-120 | 100-150 | 120-180 | 150-210 | 180-240 | 200-260 | 200-260 | 210-290 | 300-400 | l/min |
| Operating pressure | 150-170 | 160–180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | 160-180 | Kg/cm² |
| Impact rate | 600-850 | 500-850 | 500-700 | 430-580 | 430-580 | 380-550 | 300-500 | 320-470 | 300-400 | BPM |
| 85dB(A) radius | 10-18 | 16-22 | 16-22 | 21-30 | 26-35 | 35-40 | 35-40 | 38-45 | 38-45 | m |
| Hose diameter | 25 | 25 | 25 | 25 | 32 | 32 | 32 | 32 | 32 | mm |
| Rod diameter | 125 | 135 | 140 | 150 | 155 | 165 | 165 | 175 | 197 | mm |
| Applicable carrier weight | 15-18 | 16-21 | 18-26 | 25-30 | 28-35 | 30-45 | 36-50 | 40-60 | 50-90 | ton |
